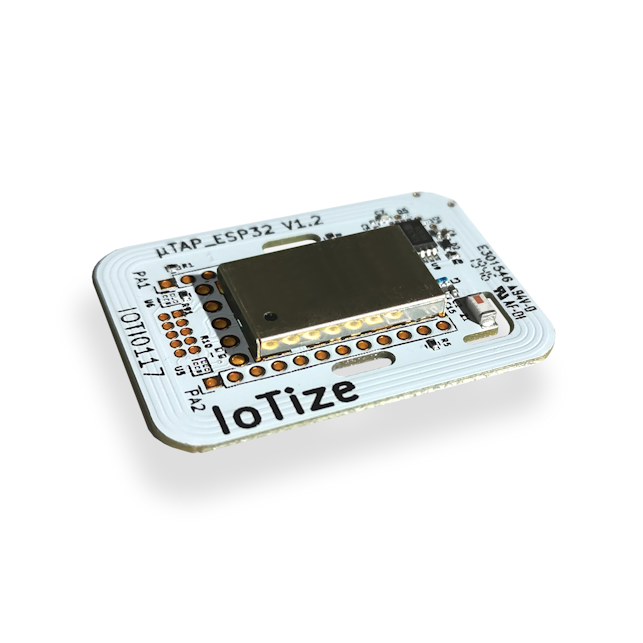

TapNLink WiFi, BLE, NFC

TapNLink module Wi-Fi, BLE, NFC (Type5) for local connection of microcontroller-based electronic systems to mobiles or to the Cloud

The TapNLink Duetware-based modules provide wireless interfaces for linking electronic systems to mobile devices and to the cloud. TapNLink connects directly to the target system's microcontroller. It integrates into and is powered by the target system.

All TapNLink products are easily configured to control access by different types of users to data in the target system. With our Automatic App Generator, TapNLink facilitates rapid creation of Human Machine Interfaces (HMI) that run on Android, iOS and Windows mobiles. These HMI apps are easily customized for different users and can be deployed and updated easily to keep pace with evolving system requirements and user needs.

The TapNLink Wi-Fi modules can also be configured to connect the target system permanently to wireless networks and the cloud. This enables permanent logging of target system data and alarms.

Key Features

Wireless Channels

• Wi-Fi 802.11b/g/n
• Bluetooth Low Energy (BLE 4.2)
• Near Field Communication (NFC) Type5 tag (ISO/IEC 15693)

Supported Target Connections

Connects on 2 GPIO of the target microcontroller and supports:

• Serial interface with Software Secure Serial Port (S3P) protocol
• Serial interface with ARM SWD debug protocol
• UART with Modbus protocol

Mobile Platform Support

• HTML5 web apps (Android, iOS)
• Ionic / Cordova app generator (iOS, Android)
• Cordova API (Android, iOS, Windows 10) or Android native (Java)

Security

• Configurable access profiles
• Configurable, encrypted passwords
• AES-128/256 module-level data encryption
• Configurable secure pairing with NFC

Mechanical Charateristics

• Dimensions: L 38mm x W 28mm x  H 3mm

Packaging Options

• Bare board (default)
• Optional ABS plastic casing (IP44).
• Optional silcone resin (IP65) treatment.

Electrical Characteristics

• Input voltage: 2.3V to 3.6V
• Low power consumption:
  • Standby: 100 µA
  • NFC Tx/Rx:     7 mA
  • Wi-Fi Rx: 110 mA
  • Wi-Fi Tx : 280 mA (802.11b)

Temperature Range

• -20°C, +55°C

Compliance

• CE (Europe), FCC (USA), IC (Canada).
• REACH
• RoHS
• WEEE

Ordering Information

• Base Part Number:  TnL-FIW103
• Unitary Price:           contact us for pricing
• MOQ:                       10 modules
• Prices include:
  • TapNLink modules pre-qualified, pre-programmed and ready to configure
  • IoTize Studio configuration and testing software
  • Software for HMI on mobile devices (iOS, Android, Windows 10)
  • IoTize Cloud MQTT infrastructure (open source)
